Inverted Roof Construction

Inverted roof construction has emerged as a response to longstanding challenges associated with conventional flat roofing systems. Traditionally, flat roofs feature an arrangement where the waterproofing membrane lies above the insulation. In contrast, inverted systems reverse this order so that the insulation forms an outer layer, shielding the waterproofing below from ultraviolet (UV) radiation, thermal variations, and mechanical damage. This system is often adopted in contexts where long-term durability and energy efficiency are paramount. Its design is particularly relevant in high-performance buildings where reduced energy loss and extended waterproofing lifespan are desired attributes. Furthermore, the integration of traditional lead flashing and edge treatments is critical for ensuring water tightness and maintaining heritage aesthetics.

Overview and Context

Inverted roof construction represents a significant evolution in flat roof technology. By placing the insulation layer on top of the waterproofing membrane, the system reduces thermal bridging and protects the sensitive membrane from environmental degradation. The typical assembly comprises several distinct layers: a waterproofing membrane at the base, a layer of rigid insulation, a protection board, and a ballast layer on the top. Each component is selected for its ability to enhance the performance and longevity of the overall system.

The approach contrasts markedly with traditional roofing methods, where insulation is located beneath the waterproofing layer. Inverted systems are particularly beneficial in climates with high temperature fluctuations or severe weather conditions, as they allow for more consistent thermal performance and reduced maintenance requirements. Additionally, the design accommodates the integration of traditional leadwork elements, such as lead flashing, which provide a historical continuity in regions where heritage preservation is a priority.

Traditional leadwork, widely employed in older buildings, requires careful integration with modern roofing materials to ensure that historical aesthetics are preserved without compromising performance. In this context, inverted roof construction not only adds a layer of protection for energy-saving components but also supports the meticulous application of lead flashing at the roof edges and around penetrations.

Etymology or Name Origin

The term “inverted roof construction” derives from the inversion of the conventional layer sequence typical of flat roofs. Historically, roofing terminology evolved in tandem with advancements in building materials. As insulation technology advanced in the mid-20th century, architects and engineers began experimenting with new configurations that reversed traditional placements. The designation “inverted” reflects this reversal, emphasising the protective benefit conferred upon the waterproofing membrane. Over time, the nomenclature has been adopted in technical literature and building codes to differentiate this system from conventional warm roof assemblies.

Overview of System Principles

General Concept

Inverted roof construction is defined by its reversed layering structure: the insulation is installed above the waterproofing membrane instead of below. This configuration offers several advantages, such as improved heat retention and enhanced protection for the waterproofing layer. The concept relies on the principle that by insulating the roof from the outside, the effects of thermal expansion and UV degradation on the membrane are significantly reduced.

Role Within Roofing Systems

Within the broader domain of roofing systems, inverted roof construction serves as a specialised solution for addressing environmental challenges. It provides a means to improve overall energy efficiency while simultaneously extending the lifespan of critical roof components. By reducing thermal losses, the system contributes to lower overall building energy consumption and improves indoor comfort. This structural innovation is particularly valued in building applications where long-term roof performance is critical, and maintenance disruptions must be minimised.

Integration with Leadworks

A distinguishing feature of inverted roof construction is its compatibility with traditional leadwork. In heritage and conservation projects, the traditional use of lead flashing is deeply embedded in construction practices. The inverted method provides an ideal scenario in which modern insulation techniques can coexist with legacy lead applications. Lead flashing, essential for ensuring water tightness at roof edges, benefits from the protective insulation layer, reducing the need for frequent repairs. This integration not only upholds heritage aesthetics but also reinforces the system’s overall durability and energy efficiency.

History

Origins and Early Developments

The origins of inverted roof construction can be traced back to the mid-20th century, a time when conventional flat roofs were increasingly compromised by issues such as water ingress, heat loss, and shortened membrane life. Early experimental approaches explored varying arrangements of insulation and waterproofing, leading to the realisation that placing insulation above the waterproofing membrane could mitigate many of these issues. Initial adoption was primarily observed in industrial settings, where engineers sought to extend the life span of roofs exposed to harsh climatic conditions.

Industrial Emergence

During the latter decades of the 20th century, the inverted roof system gained traction as a viable alternative to conventional methods. Advances in insulation technology, notably the commercialization of rigid foam boards such as PIR (polyisocyanurate) and various forms of polystyrene (EPS and XPS), enabled a more practical application of this design. The method was adopted in regions with extreme temperature variations and heavy precipitation, where the protection of the waterproofing layer was a critical factor. Industrial adoption was bolstered by the ability of inverted systems to deliver improved energy efficiency, thereby reducing operational costs and supporting compliance with evolving energy standards.

Modern Advances

Modern developments in inverted roof construction have been shaped by significant improvements in materials and installation techniques. The advent of high-performance waterproofing membranes—ranging from torch-on bitumen to advanced liquid-applied systems—has enhanced the reliability of the membrane layer. Concurrently, innovations in insulation materials have delivered products with superior thermal resistance and reduced susceptibility to moisture. Advances in construction technology, such as the use of digital diagnostic tools (thermal imaging, moisture sensors) and computer-aided design (CAD), have facilitated meticulous installation practices that ensure optimal system performance. Current iterations of inverted roof systems reflect a synthesis of increased environmental awareness, regulatory changes, and the need for sustainable building practices.

Concept and Description

Layer Composition and System Structure

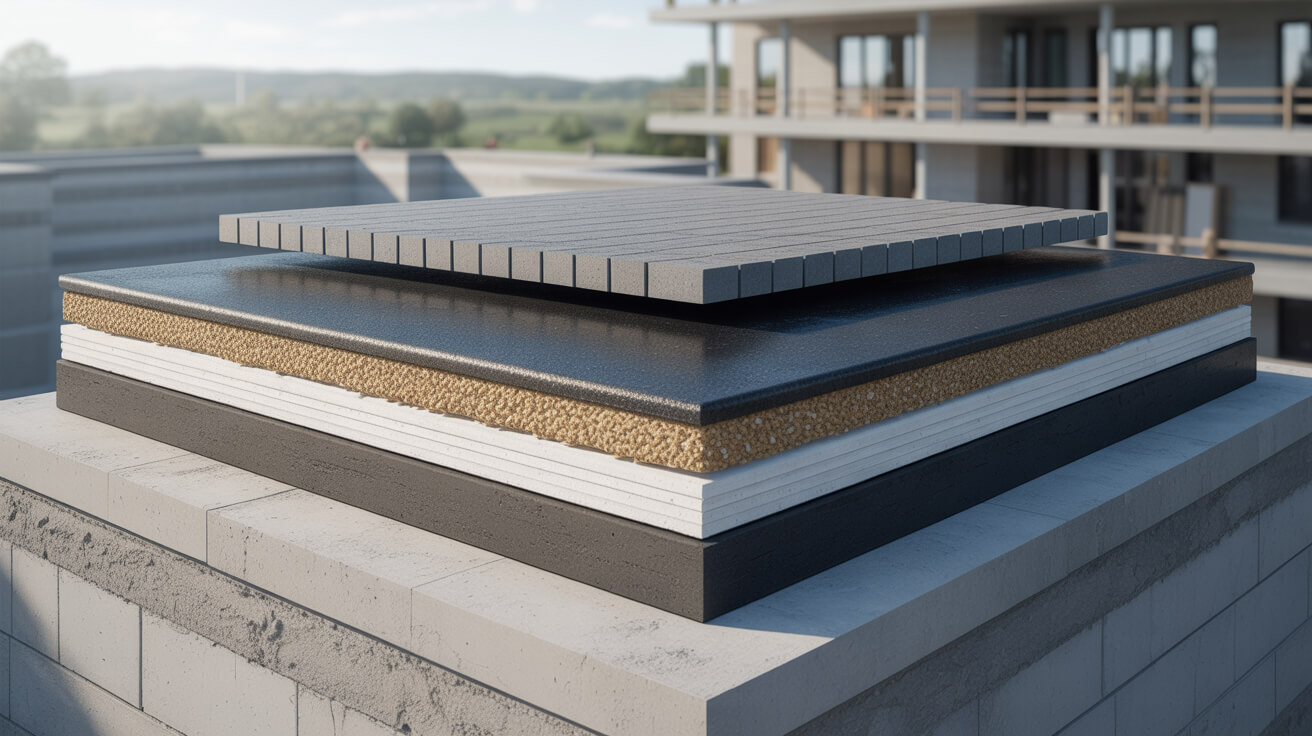

Inverted roof construction is composed of several discrete layers, each serving a specific function:

• Waterproofing Membrane: This base layer is critical for preventing water ingress and is typically made from high-performance bitumen-based materials, synthetic polymers, or liquid-applied elastomers. British Standards, such as BS6229 and BS5250, often govern its performance.
• Insulation Layer: Rigid insulation boards, such as PIR, EPS, or XPS, are installed above the waterproofing membrane. This placement protects the membrane while providing high thermal resistance and reducing heat loss.
• Protection Board: Positioned above the insulation, the protection board serves as a sacrificial layer that prevents damage to both the insulation and the waterproofing membrane during construction and throughout the roof’s service life.
• Ballast Layer: A layer of ballast, commonly in the form of gravel or pavers, is distributed over the protection board to secure the upper layers and facilitate proper drainage by ensuring that water does not accumulate on the surface.
• Roof Deck/Substrate: The underlying structure that supports the entire assembly. The roof deck may be composed of timber, concrete, or metal, and must be designed to handle the combined load of the insulation, protection board, ballast, and live loads.

Core Structural Principles

The inverted configuration primarily aims to shield the waterproofing membrane from environmental stressors. By installing the insulation on top, the membrane is less exposed to UV radiation and mechanical wear, which are common causes of premature deterioration. The separation of the membrane from direct environmental impact helps maintain its integrity and function over a longer period. Additionally, the system’s design minimises thermal bridging, supporting enhanced energy performance. The overall efficacy of the system is evaluated based on its ability to sustain a stable temperature gradient across layers, thereby preventing rapid fluctuations that could compromise the waterproofing material.

Technical Definitions

• Waterproofing Membrane: A continuous layer applied to the roof deck to prevent water penetration; its durability is critical to the overall system.
• Rigid Insulation: Board-type materials with high thermal resistance, essential for minimising thermal losses and providing structural stability.
• Protection Board: A durable layer that protects the insulation from damage during installation and over its operational lifetime.
• Ballast: Material applied to secure the upper roof layers and support proper drainage; also contributes to system stability.
• Structural Deck: The foundation on which the entire roof assembly is built, its integrity directly impacts the performance of the inverted roof system.

Functionality and Applications

Inverted roof construction is designed to optimise both energy efficiency and system durability. Its functional characteristics and applications span diverse market sectors, providing varied benefits based on deployment context.

Residential and Commercial Applications

In residential buildings, inverted roof systems offer the potential for enhanced thermal insulation, leading to reduced energy consumption and improved indoor comfort. Homeowners experience fewer maintenance issues due to the protective layering that prolongs the service life of essential roofing components. In commercial scenarios, the system supports larger-scale applications where energy efficiency and operational robustness are paramount. The benefits include:

• Enhanced Energy Efficiency: By reducing heat transfer, the system contributes to lower energy bills and promotes a more stable indoor environment.
• Extended Roof Life: The protective placement of insulation and the added ballast layer reduce the frequency of repair interventions.
• Compliance with Energy Standards: Improved thermal performance facilitates alignment with modern building regulations and sustainability certifications.

Integration with Leadwork and Heritage Systems

A notable consideration in inverted roof construction is its compatibility with traditional leadwork techniques. Many heritage buildings require careful integration of contemporary materials with traditional lead flashing and edge detailing. In such cases, the inverted system not only provides superior energy performance but also accommodates the precise application of lead components. The benefits of this integration include:

• Historical Continuity: Ensuring that modern performance standards do not compromise the aesthetic and historical integrity of heritage structures.
• Enhanced Waterproofing: Lead flashing, known for its reliability in heritage construction, is effectively combined with the inverted system to provide precise edge sealing and water tightness.
• Balanced Modern and Traditional Techniques: This hybrid approach leverages the durability of modern insulation with the proven performance of heritage leadwork, creating solutions that appeal to both conservation and efficiency requirements.

Performance Benefits and Environmental Considerations

The inverted roof system realises multiple performance benefits that contribute to its widespread adoption:

• Thermal Performance: The arrangement minimises heat loss through thermal bridging, enabling significant energy savings.
• Waterproofing Longevity: By protecting the waterproofing membrane from direct exposure to sunlight and impact, the system reduces the rate of deterioration.
• Drainage Efficiency: The ballast layer and integrated drainage design prevent water pooling, which is crucial in avoiding structural damage.
• Sustainability: Improved insulation efficiency contributes to lower carbon emissions and aligns with contemporary environmental guidelines.

Comparative Advantages

When compared to conventional warm roof systems, inverted roof construction offers several distinct advantages:

• Extended Membrane Life: Traditional roof assemblies expose membranes to the elements, while the inverted configuration shields them.
• Improved Energy Efficiency: Placing insulation on top minimises thermal losses more effectively than conventional constructions.
• Reduced Maintenance Frequency: The protective layers reduce the risk of physical damage and weather-related deterioration, leading to fewer repair cycles throughout the roof’s lifespan.

Classifications and Variants

Inverted roof construction is not a monolithic practice; it features a range of variants based on material selection, design configuration, and installation methodology.

Material-Based Variants

The classification of inverted roof systems often depends on the material selections made for insulation and waterproofing. Key variants include:

• Rigid Insulation Systems: Systems that use high-performance insulation boards such as PIR for superior thermal resistance, contrasting with more cost-effective approaches using EPS or XPS boards.
• Waterproofing Technologies: Variants are categorically distinguished by the type of membrane employed, including torch-on bitumen, liquid-applied membranes, and synthetic polymers. Each type offers unique properties concerning adhesion, flexibility, and resistance to environmental stress.
• Ballast Configurations: Differences in ballast material – ranging from traditional gravel to pavers or even green roof modules – impact both the aesthetic and functional aspects of the system.

Design and Structural Variants

In addition to material choices, inverted roof systems can be diversified by their structural design:

• New Construction Systems: Tailored for contemporary buildings, these systems are engineered from the ground up to incorporate advanced insulation materials and energy-efficient waterproofing.
• Retrofit and Heritage Systems: Specially designed for the renovation of existing structures, these variants focus on minimal disruption while integrating modern techniques with traditional leadwork.
• Systems with Enhanced Drainage: Some systems incorporate specialised drainage elements to manage wastewater more effectively, particularly in regions prone to heavy rainfall or snow.

Systems, Tools, and Methodologies

The effective implementation of an inverted roof system requires a combination of systematic installation methodologies, diagnostic tools, and process management strategies.

Installation Protocols

The construction process adheres to a precise sequence designed to maximise system integrity:

• Roof Deck Preparation: The substrate must be properly levelled and structurally assessed to support the additional layers.
• Application of Waterproofing Membrane: This critical layer is installed using methods that may include full adhesion, mechanical fixing, or torch-on techniques, all adhering to relevant British Standards.
• Insulation Placement: Rigid insulation boards are installed above the membrane, ensuring minimal thermal bridging and robust thermal performance.
• Protection Board Installation: A protective board is then laid to prevent damage to the insulation during subsequent construction phases.
• Ballast Application: A layer of ballast, such as gravel or pavers, is carefully distributed, serving to secure the assembly and facilitate proper drainage.

Diagnostic and Measurement Tools

To ensure that the system performs as intended, a variety of diagnostic tools are employed:

• Thermal Imaging Cameras: These cameras detect heat losses and identify areas where insulation may be insufficient.
• Moisture Metres: Instruments measure moisture levels within the various layers, ensuring that water ingress does not compromise performance.
• Structural Load Calculators: These tools assess whether the roof deck can support the cumulative weight of the assembled layers.
• Acoustic and Vibration Analysis: Testing may also include assessments that gauge the acoustic performance of the system in different environments.

Comparative Methodologies

To optimise inverted roof systems, stakeholders use a range of methodologies for performance comparison:

• Cost-Benefit Analysis: This assessment balances higher initial installation costs against the long-term savings realised through reduced maintenance and lower energy consumption.
• Energy Efficiency Judgments: Measurements such as U-values and Lambda values are used to evaluate how well the system minimises heat loss.
• Lifecycle Analysis: Evaluations extend over the expected lifespan of the roof, considering routine maintenance intervals and overall durability.

Stakeholders and Entities Involved

A wide range of professionals and organisations contribute to the development and maintenance of inverted roof construction systems.

Industry Professionals

Roofing contractors and installers, often highly specialised in modern flat roof techniques and heritage restoration, are at the forefront of executing these systems. Their expertise ensures that materials are applied correctly and that the system integrates seamlessly with other architectural elements.

Regulatory Bodies

Various national and regional agencies are responsible for setting the standards that govern roofing systems. In the United Kingdom, this includes adherence to British Standards (e.g., BS6229, BS5250) and Building Regulations (such as Part L for energy efficiency). Regulatory bodies ensure that installations meet minimum safety and performance requirements.

Material Manufacturers

Manufacturers of key components, including waterproofing membranes, insulation boards, protection boards, and ballast materials, provide the essential products that underpin the system. Their products must adhere to rigorous quality and performance standards, thus maintaining system integrity.

Heritage and Conservation Authorities

In cases where inverted roof systems are integrated into heritage buildings, conservation authorities play a critical role. They set guidelines for maintaining historical integrity while enabling modernization, especially with respect to the use of traditional lead flashing and other heritage materials.

Legal, Regulatory, and Ethical Considerations

Inverted roof construction is subject to an array of legal and regulatory requirements designed to ensure safety, performance, and environmental responsibility.

Regulatory Standards

The system must comply with several key standards:

• British Standards: BS6229 and BS5250 prescribe the performance and installation requirements for waterproofing and flat roofs, while related standards govern insulation and material properties.
• Building Regulations: Part L of the Building Regulations addresses energy efficiency, ensuring that the roof system contributes to overall building performance.
• Leadwork Guidelines: In contexts involving heritage structures, additional standards relating to lead flashing (e.g., BSEN12588) must be observed to preserve traditional construction methods.

Compliance and Certification

Certification systems, such as competent roofer schemes and insurance-backed warranties, provide a framework for verifying the quality of installations. These measures ensure that the system is both safe and effective over its expected lifespan.

Ethical and Environmental Considerations

Sustainability is a critical aspect of modern roof construction. Inverted roof systems contribute to reduced energy consumption and lower carbon emissions by enhancing thermal insulation and reducing maintenance cycles. Ethical considerations also extend to the responsible procurement of materials and the minimization of construction waste. These factors are increasingly central to both regulatory requirements and market expectations.

Performance Metrics and Data

Evaluating the efficacy of inverted roof systems involves a range of performance metrics and quantitative data.

Thermal and Energy Efficiency Metrics

• U-Value and Lambda Value: These metrics quantify the thermal resistance of the overall roof assembly. Lower U-values indicate better insulation performance, which is critical for energy conservation.
• Empirical Energy Savings: Data from installations often reveal significant reductions in energy consumption, providing a basis for a return-on-investment analysis.
• Comparative Studies: Benchmarking against conventional roofing systems helps validate the superior performance of inverted roofs in reducing heat loss and maintaining indoor comfort.

Durability and Lifespan Data

• Expected Service Life: Studies indicate that protecting the waterproofing membrane through inversion can extend the service life of the roof system by mitigating environmental degradation.
• Maintenance Frequency: Reduced need for maintenance interventions is noted in systems that incorporate effective insulation and ballast arrangements.
• Lifecycle Cost Analysis: Detailed economic assessments compare the initial costs with the long-term savings realised through increased durability and reduced energy bills.

Economic Performance

• Installation Costs Versus Savings: Although inverted roof systems often require a higher initial outlay, the benefits in energy savings and reduced maintenance contribute to an attractive lifecycle cost profile.
• Return on Investment (ROI): Economic models typically illustrate favourable long-term returns due to enhanced durability and efficiency.

Challenges and Limitations

Despite the many advantages of inverted roof construction, the system presents several challenges that must be carefully managed.

Technical and Operational Issues

• Complexity of Installation: The reversed layering sequence necessitates precise execution, and any mishandling may compromise the performance of the waterproofing or insulation layers.
• Material Compatibility: Ensuring that all components are chemically and mechanically compatible is essential; improper matching can lead to issues such as poor adhesion or premature degradation.
• Diagnostic Complexity: The layered configuration can make it more difficult to diagnose problems, as issues in one layer might not be immediately visible without the use of specialised diagnostic tools like thermal imaging and moisture metres.

Economic and Maintenance Considerations

• Higher Initial Investment: The use of high-quality materials and the requirement for precise installation methods typically result in increased upfront costs compared to conventional roofing systems.
• Specialised Maintenance Procedures: Although designed to reduce long-term maintenance, inverted roof systems may require periodic specialised inspections and maintenance, which can add to overall costs.
• Operational Risks: In certain climatic environments, additional measures may be necessary to ensure proper drainage and to manage thermal expansion across the system layers.

Adoption and Implementation Barriers

• Expertise Requirement: The successful installation of an inverted roof system demands a high level of expertise; thus, regions with limited availability of skilled contractors may experience slower adoption rates.
• Environmental Constraints: In areas with severe or rapidly changing weather conditions, additional adaptations may be required to optimise system performance, such as enhanced drainage solutions or more robust insulation materials.
• Cost Constraints: For some building projects, the higher initial cost may be a deterrent, despite the long-term benefits in energy efficiency and reduced maintenance.

Impact and Legacy

Inverted roof construction has influenced the roofing industry by offering a solution that combines modern energy efficiency with extended system durability. Its adoption has led to advancements in material science and installation techniques that continue to benefit a wide range of applications.

Industry Impact and Innovations

The introduction of inverted roof systems has spurred significant progress in the development of waterproofing membranes and high-performance insulation materials. Innovations in these areas have not only improved the performance of inverted roofs but have also advanced the overall technology of flat roof systems. The method has set new benchmarks for energy efficiency and durability, prompting further research and development in the field.

Historical and Cultural Legacy

While inverted roof construction is a modern development, its integration with traditional leadwork practices lends it historical significance. Many heritage buildings have benefitted from this system by achieving a balance between modern performance standards and the preservation of historical aesthetics. In particular, the careful application of lead flashing within inverted roof systems has preserved traditional craftsmanship while enhancing the functionality of older structures.

Broader Implications

The legacy of inverted roof construction extends beyond individual buildings. By improving energy efficiency and reducing maintenance requirements, these systems contribute to broader economic and environmental benefits. They support sustainable building practices and align with global efforts to reduce energy consumption and carbon emissions across the construction industry.

Future Directions, Cultural Relevance, and Design Discourse

Inverted roof construction is poised for continued evolution as technological innovations, regulatory changes, and market demands drive further developments in roofing design.

Technological Innovations

Advancements in smart materials and digital diagnostics are expected to transform inverted roof systems significantly. The integration of IoT-enabled sensors can provide real-time monitoring of thermal performance, moisture levels, and structural integrity. These developments promise to shift the roofing industry from reactive maintenance to predictive maintenance, resulting in reduced downtime and more efficient energy management.

• Smart Sensors: Future systems may include sensor networks that continuously monitor the performance of the insulation, waterproofing, and ballast layers. Data gathered from these sensors could be used to inform maintenance schedules and operational adjustments, ensuring that the roof maintains its optimum performance.
• Advanced Materials: Ongoing research in materials science is likely to produce insulation boards with even higher thermal resistance and waterproofing membranes that are more resilient to chemical and mechanical stresses. These new materials will further enhance the durability and energy efficiency of inverted roof systems.
• Automated Installation Techniques: Robotics and computer-aided installation processes have the potential to reduce human error and improve the consistency of roof assembly. By automating critical steps in the construction process, the industry could see a reduction in installation time and costs.

Emerging Design Trends

The architectural landscape continues to evolve, with a growing emphasis on sustainability and energy efficiency. Inverted roof construction is increasingly integrated into designs that prioritise these values, and future trends may include:

• Hybrid Systems: Combining the benefits of inverted roofs with green roof technologies to create systems that not only offer superior insulation and waterproofing but also promote biodiversity and reduce urban heat island effects.
• Aesthetic Integration: As architects strive for designs that blend form and function, inverted roof systems are being refined to be less obtrusive and more visually seamless with the overall building design. Developments in material finishes and ballast applications are likely to further this trend.
• Adaptive Reuse: Increasing numbers of older buildings are being retrofitted with modern inverted roof systems. This not only improves the energy performance of heritage structures but also enhances their resilience against modern environmental challenges.

Regulatory and Sustainability Forecasts

As building regulations continue to evolve, inverted roof construction is expected to benefit from stricter energy efficiency standards and sustainability mandates. Future regulatory trends may include:

• Enhanced Energy Standards: With increasing emphasis on reducing carbon emissions, regulatory frameworks are likely to impose more stringent energy performance requirements on roofing systems. Inverted roofs, with their inherent thermal efficiency, are well positioned to exceed these new benchmarks.
• Sustainability Certifications: There is a growing market for building systems that meet sustainability certifications. Future developments in inverted roof technology may focus on optimising recyclable material use and reducing construction waste, driving better environmental outcomes.
• Stronger Safety and Compliance Protocols: Regulatory bodies may also implement enhanced safety protocols for roofing installations, necessitating further innovation in installation techniques and material performance. This will ensure that inverted roof systems remain not only efficient but also safe in a variety of environmental conditions.

Cultural and Design Discourse

Inverted roof construction is increasingly featured in broader discussions on modern sustainable architecture. Its adoption reflects a shift in the industry towards systems that integrate advanced energy performance with heritage conservation. Within cultural and academic discourses, several themes are emerging:

• Heritage Preservation vs. Modern Efficiency: The intersection of modern roofing techniques with historical preservation offers fertile ground for debate and innovation. Stakeholders in heritage conservation are particularly attuned to the challenges of integrating modern insulation while maintaining traditional leadwork and flashing.
• The Role of Innovative Design in Urban Renewal: As cities evolve, the replacement of outdated roofing systems with advanced alternatives like inverted roofs becomes a symbol of progress in urban renewal initiatives. These systems are increasingly viewed as critical components in making urban environments more resilient and energy-efficient.
• Socioeconomic Impact: The long-term economic benefits of inverted roof construction, including reduced maintenance costs and improved energy savings, contribute to discussions about sustainable development and infrastructure investment. This has implications across residential, commercial, and industrial sectors.
